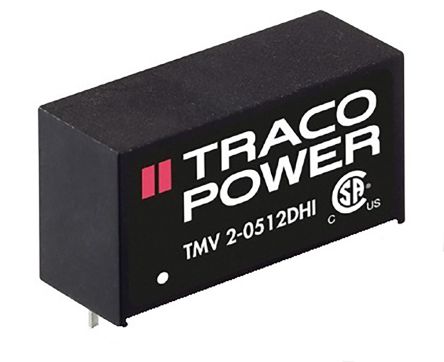

TRACOPOWER TMV 2HI 2W Isolated DC-DC Converter Through Hole, Voltage in 4.5 → 5.5 V dc, Voltage out ±12V dc [TMV 2-0512DHI]; 898-7037
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | ±12V dc |
| Output Voltage Adjustment Range | ±11.4 V dc, ±12.6 V dc |
| Input Voltage Range | 4.5 → 5.5 V dc |
| Input Voltage Nominal | 5 V dc |
| Isolation Voltage | 5.2kV dc |
| Power Rating | 2W |
| Output Current | ±84mA |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Efficiency | 0.77 |
| Package | SIP 7 |
| Load Regulation | <10% |
| Minimum Temperature | -40°C |
| Maximum Temperature | +80°C |
| Length | 19.5mm |
| Series | TMV 2HI |
| Standards Met | A11:2009, A12:2011, A1:2010, A1:2011, Am 1:2009, ANSI/UL No. 60950-1 2nd ed., CAN/CSA-C22.2 No 60950-1-07 2nd ed, CB, CSAus, EN 60950-1:2006, IEC 60950-1:2005 (2nd edition), REACH, ROHS |
| Depth | 10.2mm |
| Width | 7.1mm |
