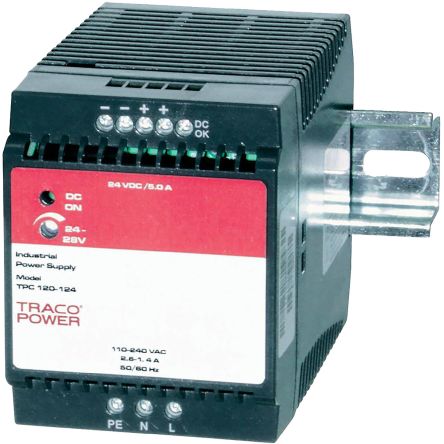

TRACOPOWER, TPC DIN Rail Power Supply, 24V dc Output Voltage, 5A Output Current [TPC 120-124]; 125-8534
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac, Dc |
| AC or DC Output Voltage | Dc |
| Input Voltage | 85 → 264 V ac, 90 → 375 V dc |
| Output Voltage | 24 V dc |
| Output Current | 0.208333333333333 |
| Power Rating | 120W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Height | 90mm |
| Width | 72mm |
| Special Features | Adjustable Output Voltage, Low Output Ripples & Noise, Power Good Signal |
| MTBF | >1300000h |
| Output Voltage Adjustment Range | 24 → 28.8V |
| Maximum Temperature | +70°C |
| Standards Met | CB Scheme, CCSAus, CE, CULus, CUS Recognised, EN 50022-35X15/7.5, EN 50178, EN 55022, EN 60204, EN 61000-6-2, EN 61000-6-3, EN 61204-3, EN 61558-2-16, EN 61558-2-8, IEC 61000-3-2, IEC/EN 60335-1, IEC/EN 60529, IEC/EN 60950-1, IEC/EN 61000-4-11, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 62477, IP20, NEC, SI, UL 1310, UL 508, UL 60950-1, UL 94 V-0 |
| Series | TPC |
| Ripple And Noise | 100mV Pk-Pk |
| Minimum Temperature | -25°C |
| Depth | 110mm |
| Mounting Type | DIN Rail Mount |
