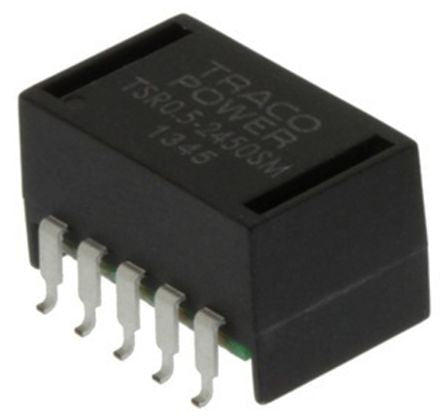

TRACOPOWER Switching Regulator, 6.5 → 32V dc Input, 5V dc Output, 500mA [TSR 0.5-2450SM]; 166-6378
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage | 6.5 → 32V dc |
| Output Voltage | 5V dc |
| Number of Outputs | 1 |
| Output Current | 500mA |
| Mounting Type | Surface Mount |
| Package | SIP |
| Minimum Temperature | -40°C |
| Maximum Temperature | +90°C |
| Efficiency | 86 % @ 32 V dc, 94 % @ Vin min |
| MTBF | >2000000h |
| Load Regulation | 0.006 |
| Line Regulation | 0.004 |
| Ripple And Noise | 30mV Pk-Pk |
| Maximum Input Current | 5mA |
| Width | 9.6mm |
| Input Power Range | 1.5W |
| Depth | 9.24 (With Pin)mm |
| Application | General Purpose |
| Protection Features | Over Temperature Protection, Short Circuit Protection |
| Switching Frequency Range | Maximum of 330kHz |
| Weight | 1.7g |
| Power Signal Conversion Type | DC-DC |
| Standards Met | EN 55022 Certified, EN 61000-4-2 Certified, EN 61000-4-3 Certified, EN 61000-4-4 Certified, EN 61000-4-6 Certified, EN 61000-4-8 Certified, IPC J-STD-020D.1, RoHS Compliant |
| Series | TSR |
| Length | 15.3mm |
| Special Features | Adjustable Output Voltage, Excellent Line/Load Regulation, Low Standby Current, Remote ON/OFF Input |
