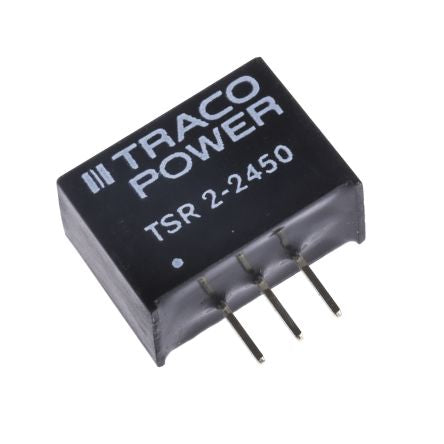

TRACOPOWER Switching Regulator, 6.5 → 36V dc Input, 5V dc Output, 2A [TSR 2-2450]; 906-8487
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage | 6.5 → 36V dc |
| Output Voltage | 5V dc |
| Number of Outputs | 1 |
| Output Current | 2A |
| Mounting Type | Through Hole |
| Package | SIP |
| Minimum Temperature | -40°C |
| Maximum Temperature | +85°C |
| Efficiency | 0.94 |
| MTBF | 13520000h |
| Load Regulation | Maximum of 1% |
| Line Regulation | Maximum of 0.5% |
| Ripple And Noise | 50mV Pk-Pk |
| Weight | 2.6g |
| Rated Output Power | 2W |
| Protection Features | Over Temperature Protection, Overload Protection, Short Circuit Protection |
| Width | 7.5mm |
| Depth | 10.1mm |
| Switching Frequency Range | 410kHz |
| Standards Met | IEC/EN 60950-1, MIL-STD-810F, UL 60950-1, UL 94 V-0 |
| Power Signal Conversion Type | DC-DC |
| Series | TSR 2 |
| Length | 14mm |
| Maximum Input Current | 1mA |
