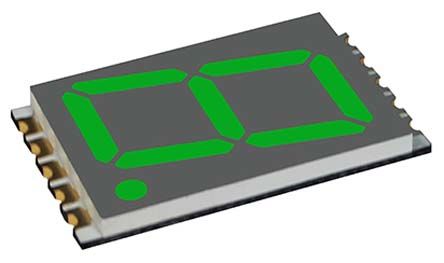

DSM7UA70105 VCC 7-Segment LED Display, CA Green 700 mcd RH DP 17.8mm [DSM7UA70105]; 137-1318
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 1 |
| LED Colours | Green |
| Number of Segments | 7 |
| Dominant Wavelength | 530 nm |
| Character Width | 9.7mm |
| Character Height | 17.8mm |
| Common Connection | Anode |
| Mounting Type | Surface Mount |
| External Depth | 2.3mm |
| External Dimensions | 24 x 14.8 x 2.3mm |
| External Height | 24mm |
| External Width | 14.8mm |
| Luminous Intensity | 700 mcd |
| Colour of Face | Grey |
| Power Dissipation | 70mW |
| Minimum Operating Temperature | -40°C |
| Forward Voltage | 2.6 V |
| For Use With | DSM Series PCB, DSM Series Socket |
| Forward Current | 25mA |
| Decimal Orientation | Right Side |
| Operating Temperature Range | -40 → +105°C |
| Series | DSM |
| Maximum Operating Temperature | +105°C |
