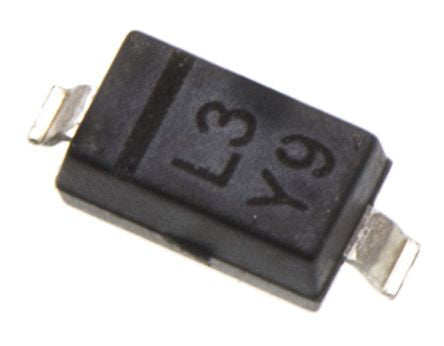

Vishay BAV20W-E3-18 Switching Diode, 250mA 200V, 2-Pin SOD-123 [BAV20W-E3-18]; 165-4953
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Maximum Forward Current | 250mA |
| Number of Elements per Chip | 1 |
| Mounting Type | Surface Mount |
| Maximum Reverse Voltage | 200V |
| Package Type | SOD-123 |
| Diode Technology | Silicon Junction |
| Maximum Forward Voltage Drop | 1.25V |
| Pin Count | 2 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 2.85mm |
| Width | 1.7mm |
| Height | 1.25mm |
| Dimensions | 2.85 x 1.7 x 1.25mm |
| Power Dissipation | 410mW |
| Maximum Series Resistance @ Maximum IF | 5 Ω @ 10 mA |
