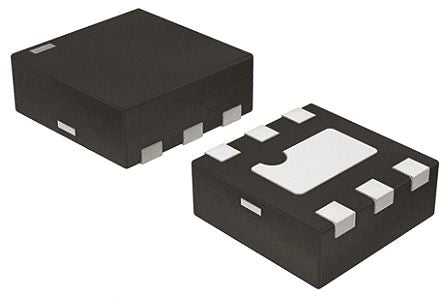

Vishay GMF05LC-HSF-GS08, Quint Bi-Directional ESD Protection Diode, 70W, 6-Pin LLP75 [GMF05LC-HSF-GS08]; 170-8376
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Common Anode |
| Direction Type | Bi-Directional |
| Maximum Clamping Voltage | 12.5V |
| Minimum Breakdown Voltage | 6V |
| Mounting Type | Surface Mount |
| Package Type | LLP75 |
| Maximum Reverse Stand-off Voltage | 5V |
| Pin Count | 6 |
| Peak Pulse Power Dissipation | 70W |
| Maximum Peak Pulse Current | 5A |
| ESD Protection | Yes |
| Number of Elements per Chip | 5 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +125 °C |
| Length | 1.65mm |
| Height | 0.6mm |
| Test Current | 1mA |
| Maximum Reverse Leakage Current | 100nA |
| Dimensions | 1.65 x 1.65 x 0.6mm |
| Width | 1.65mm |
