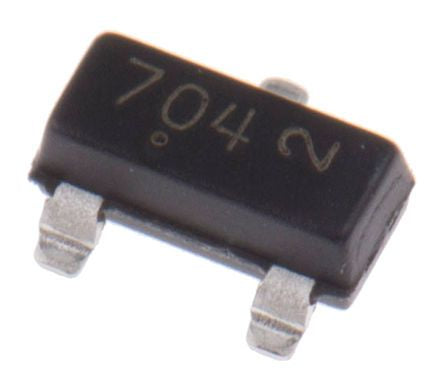

Vishay GSOT05-E3-08, Bi-Directional ESD Protection Diode, 480W, 3-Pin SOT-23 [GSOT05-E3-08]; 902-6691
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Bi-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 8.7V |
| Minimum Breakdown Voltage | 6V |
| Mounting Type | Surface Mount |
| Package Type | SOT-23 |
| Maximum Reverse Stand-off Voltage | 5V |
| Pin Count | 3 |
| Peak Pulse Power Dissipation | 480W |
| Maximum Peak Pulse Current | 30A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Length | 3.1mm |
| Capacitance | 350pF |
| Maximum Reverse Leakage Current | 20µA |
| Dimensions | 3.1 x 1.43 x 1.05mm |
| Test Current | 1mA |
| Width | 1.43mm |
| Height | 1.05mm |
