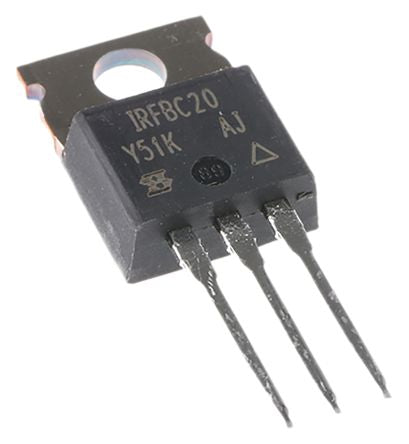

IRFBC20PBF N-Channel MOSFET, 2.2 A, 600 V, 3-Pin TO-220AB Vishay [IRFBC20PBF]; 178-0839
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 2.2 A |
| Maximum Drain Source Voltage | 600 V |
| Package Type | TO-220AB |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 4.4 Ω |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 50 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Width | 4.7mm |
| Height | 9.01mm |
| Length | 10.41mm |
| Typical Gate Charge @ Vgs | 18 nC @ 10 V |
| Transistor Material | Si |
