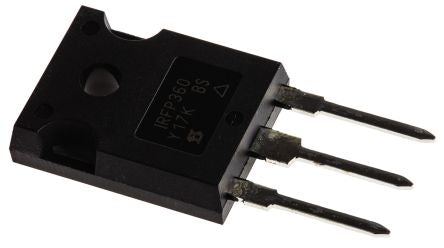

IRFP360PBF N-Channel MOSFET, 23 A, 400 V, 3-Pin TO-247AC Vishay [IRFP360PBF]; 178-0802
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 23 A |
| Maximum Drain Source Voltage | 400 V |
| Package Type | TO-247AC |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 200 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 280 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +150 °C |
| Transistor Material | Si |
| Length | 15.87mm |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 210 nC @ 10 V |
| Width | 5.31mm |
| Height | 20.7mm |
