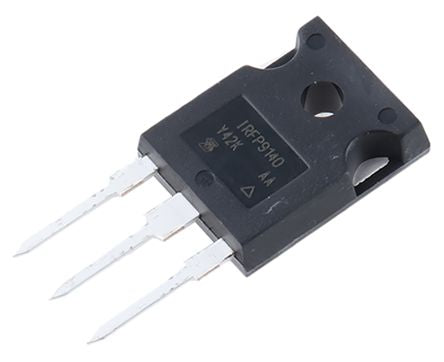

IRFP9140PBF P-Channel MOSFET, 21 A, 100 V, 3-Pin TO-247AC Vishay [IRFP9140PBF]; 540-9727
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 21 A |
| Maximum Drain Source Voltage | 100 V |
| Package Type | TO-247AC |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 200 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 180 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Height | 20.7mm |
| Length | 15.87mm |
| Maximum Operating Temperature | +175 °C |
| Typical Gate Charge @ Vgs | 61 nC @ 10 V |
| Minimum Operating Temperature | -55 °C |
| Width | 5.31mm |
| Transistor Material | Si |
