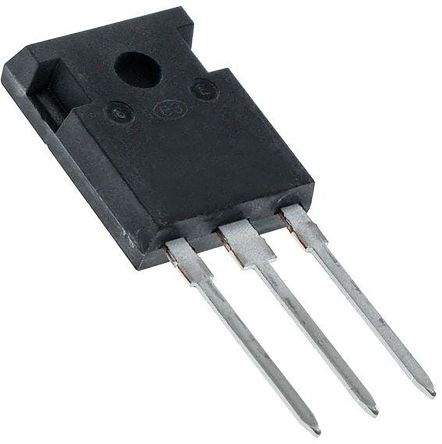

IRFPS43N50KPBF N-Channel MOSFET, 47 A, 500 V, 3-Pin Super-247 Vishay [IRFPS43N50KPBF]; 543-1522
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 47 A |
| Maximum Drain Source Voltage | 500 V |
| Package Type | Super-247 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 90 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 3V |
| Maximum Power Dissipation | 540 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -30 V, +30 V |
| Number of Elements per Chip | 1 |
| Length | 16.1mm |
| Maximum Operating Temperature | +150 °C |
| Height | 20.8mm |
| Typical Gate Charge @ Vgs | 350 nC @ 10 V |
| Minimum Operating Temperature | -55 °C |
| Width | 5.3mm |
| Transistor Material | Si |
