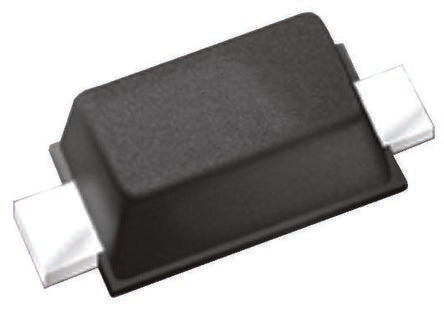

Vishay MSP5.0A-M3/89A, Uni-Directional TVS Diode, 100W, 2-Pin μSMP [MSP5.0A-M3/89A]; 710-3058
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 9.2V |
| Minimum Breakdown Voltage | 6.4V |
| Mounting Type | Surface Mount |
| Package Type | μSMP |
| Maximum Reverse Stand-off Voltage | 5V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 100W |
| Maximum Peak Pulse Current | 10.9A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 2.3mm |
| Maximum Reverse Leakage Current | 100µA |
| Test Current | 10mA |
| Height | 0.73mm |
| Dimensions | 2.3 x 1.4 x 0.73mm |
| Width | 1.4mm |
