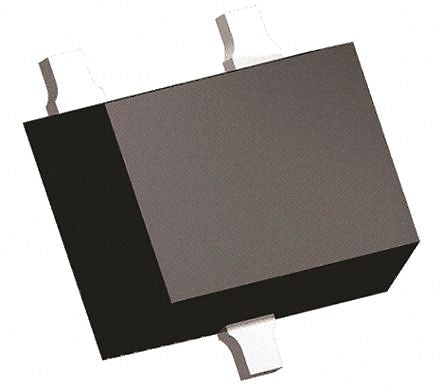

SI1070X-T1-GE3 N-Channel MOSFET, 1.2 A, 30 V, 6-Pin SOT-523 Vishay [SI1070X-T1-GE3]; 159-6520
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 1.2 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | SOT-523 (SC-89) |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Maximum Drain Source Resistance | 140 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 0.7V |
| Maximum Power Dissipation | 236 mW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -12 V, +12 V |
| Number of Elements per Chip | 1 |
| Length | 1.7mm |
| Maximum Operating Temperature | +150 °C |
| Transistor Material | Si |
| Minimum Operating Temperature | -55 °C |
| Width | 1.2mm |
| Height | 0.6mm |
| Typical Gate Charge @ Vgs | 3.8 nC @ 4.5 V |
