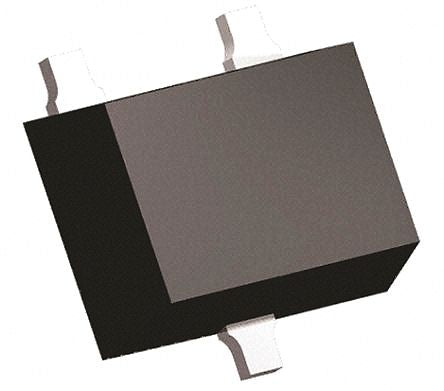

SI1077X-T1-GE3 P-Channel MOSFET, 760 mA, 30 V, 6-Pin SOT-523 Vishay [SI1077X-T1-GE3]; 159-6521
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 760 mA |
| Maximum Drain Source Voltage | 30 V |
| Package Type | SOT-523 (SC-89) |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Maximum Drain Source Resistance | 244 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 0.7V |
| Maximum Power Dissipation | 236 mW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -12 V, +12 V |
| Number of Elements per Chip | 1 |
| Typical Gate Charge @ Vgs | 4.43 nC @ 4.5 V |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Transistor Material | Si |
| Length | 1.7mm |
| Height | 0.6mm |
| Width | 1.2mm |
