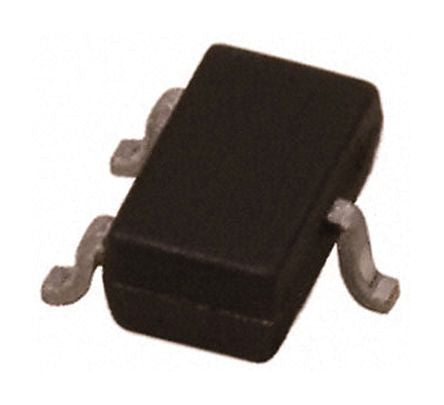

SI2328DS-T1-E3 N-Channel MOSFET, 1.15 A, 100 V, 3-Pin SOT-23 Vishay [SI2328DS-T1-E3]; 919-0278
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 1.15 A |
| Maximum Drain Source Voltage | 100 V |
| Package Type | SOT-23 (TO-236) |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 250 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 730 mW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Transistor Material | Si |
| Width | 1.4mm |
| Height | 1.02mm |
| Length | 3.04mm |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 3.3 nC @ 10 V |
