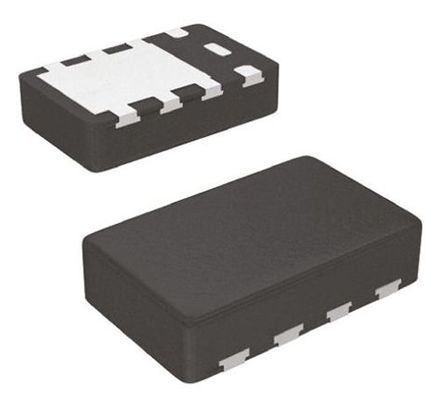

SI5448DU-T1-GE3 N-Channel MOSFET, 25 A, 40 V TrenchFET, 8-Pin PowerPAK ChipFET Vishay [SI5448DU-T1-GE3]; 134-9156
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 25 A |
| Maximum Drain Source Voltage | 40 V |
| Package Type | PowerPAK ChipFET |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 9.47 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.5V |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 31 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | +20 V |
| Number of Elements per Chip | 1 |
| Forward Diode Voltage | 1.2V |
| Typical Gate Charge @ Vgs | 26.2 nC @ 10 V |
| Width | 1.9mm |
| Maximum Operating Temperature | +150 °C |
| Series | TrenchFET |
| Minimum Operating Temperature | -55 °C |
| Length | 3mm |
| Height | 0.8mm |
