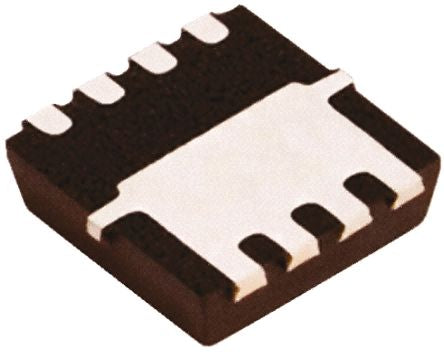

SI7232DN-T1-GE3 Dual N-Channel MOSFET, 24 A, 20 V, 8-Pin PowerPAK 1212 Vishay [SI7232DN-T1-GE3]; 165-6218
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 24 A |
| Maximum Drain Source Voltage | 20 V |
| Package Type | PowerPAK 1212 |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 24 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 0.4V |
| Maximum Power Dissipation | 23 W |
| Transistor Configuration | Isolated |
| Maximum Gate Source Voltage | -8 V, +8 V |
| Number of Elements per Chip | 2 |
| Width | 3.15mm |
| Height | 1.07mm |
| Transistor Material | Si |
| Maximum Operating Temperature | +150 °C |
| Typical Gate Charge @ Vgs | 21 nC @ 8 V |
| Length | 3.15mm |
| Minimum Operating Temperature | -55 °C |
