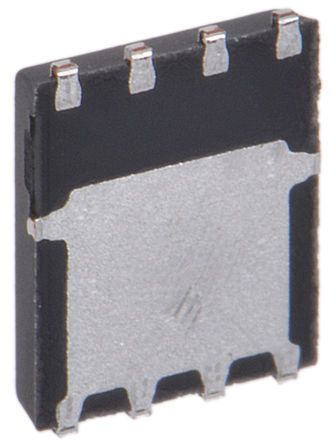

SI7615ADN-T1-GE3 P-Channel MOSFET, 35 A, 20 V, 8-Pin PowerPAK 1212 Vishay [SI7615ADN-T1-GE3]; 165-6973
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 35 A |
| Maximum Drain Source Voltage | 20 V |
| Package Type | PowerPAK 1212 |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 9.8 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 0.4V |
| Maximum Power Dissipation | 52 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -12 V, +12 V |
| Number of Elements per Chip | 1 |
| Transistor Material | Si |
| Length | 3.4mm |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 122 nC @ 10 V |
| Width | 3.4mm |
| Height | 1.12mm |
| Maximum Operating Temperature | +150 °C |
