EF Series Power MOSFET With Fast Body Di [SIHB22N60EF-GE3]; 188-4976
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 19 A |
| Maximum Drain Source Voltage | 600 V |

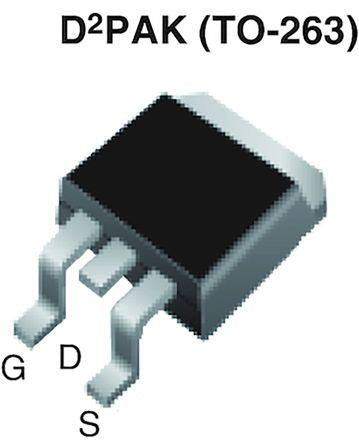

| Package Type | D2PAK (TO-263) |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 182 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 179 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±30 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Forward Diode Voltage | 1.2V |
| Length | 10.41mm |
| Maximum Operating Temperature | +150 °C |
| Height | 4.57mm |
| Typical Gate Charge @ Vgs | 48 nC @ 10 V |
| Width | 9.65mm |
