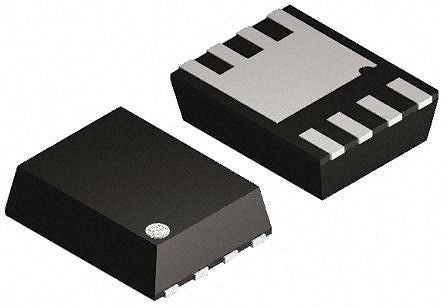

SI7469DP-T1-E3 P-Channel MOSFET, 28 A, 80 V TrenchFET, 8-Pin PowerPAK SO Vishay Siliconix [SI7469DP-T1-E3]; 173-4053
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 28 A |
| Maximum Drain Source Voltage | 80 V |
| Package Type | PowerPAK SO |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 29 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 83 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Transistor Material | Si |
| Maximum Operating Temperature | +150 °C |
| Forward Diode Voltage | 1.2V |
| Length | 5.99mm |
| Typical Gate Charge @ Vgs | 105 nC @ 10 V |
| Width | 5mm |
| Series | TrenchFET |
| Minimum Operating Temperature | -55 °C |
| Height | 1.07mm |
