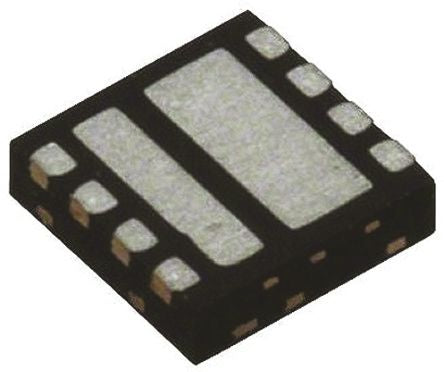

SIZ904DT-T1-GE3 Dual N-Channel MOSFET, 9.5 A, 14.5 A, 30 V PowerPAIR, 8-Pin PowerPAIR Vishay [SIZ904DT-T1-GE3]; 814-1320
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 9.5 A, 14.5 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | PowerPAIR |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 17 mΩ, 30 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 20 W, 33 W |
| Transistor Configuration | Series |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 2 |
| Width | 5.1mm |
| Typical Gate Charge @ Vgs | 8 nC @ 10 V, 15.4 nC @ 10 V |
| Minimum Operating Temperature | -55 °C |
| Height | 0.7mm |
| Transistor Material | Si |
| Maximum Operating Temperature | +150 °C |
| Series | PowerPAIR |
| Length | 6.1mm |
