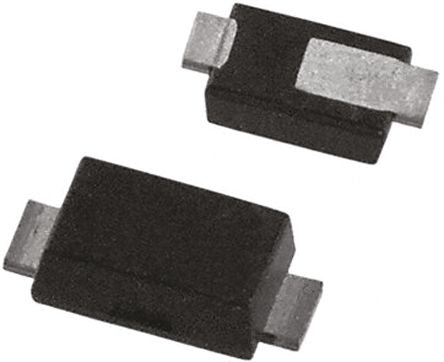

Vishay SMA6F5.0A-M3/6A, Uni-Directional TVS Diode, 4000W, 2-Pin DO-221AC [SMA6F5.0A-M3/6A]; 165-7235
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 13.4V |
| Minimum Breakdown Voltage | 6.4V |
| Mounting Type | Surface Mount |
| Package Type | DO-221AC |
| Maximum Reverse Stand-off Voltage | 5V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 4000W |
| Maximum Peak Pulse Current | 298A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +175 °C |
| Width | 2.7mm |
| Maximum Reverse Leakage Current | 375µA |
| Height | 1mm |
| Dimensions | 4.35 x 2.7 x 1mm |
| Test Current | 10mA |
| Length | 4.35mm |
