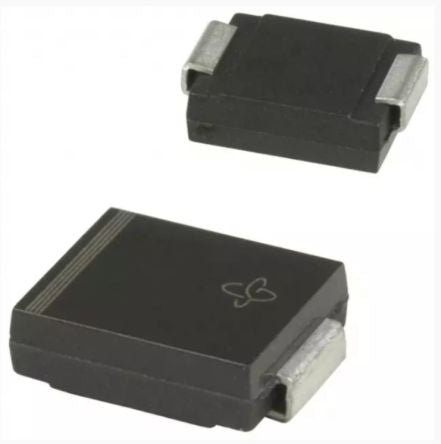

Vishay SMBJ36CA-E3/52, Bi-Directional TVS Diode, 600W, 2-Pin DO-214AA [SMBJ36CA-E3/52]; 631-1075
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Maximum Clamping Voltage | 58.1V |
| Minimum Breakdown Voltage | 40V |
| Mounting Type | Surface Mount |
| Package Type | DO-214AA (SMB) |
| Maximum Reverse Stand-off Voltage | 36V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 600W |
| Maximum Peak Pulse Current | 10.3A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Width | 3.94mm |
| Length | 4.57mm |
| Dimensions | 4.57 x 3.94 x 2.24mm |
| Test Current | 1mA |
| Height | 2.24mm |
| Maximum Reverse Leakage Current | 1µA |
