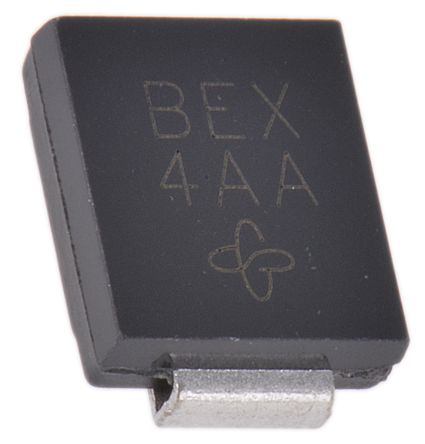

Vishay SMCJ22CA-E3/57T, Bi-Directional TVS Diode, 1500W, 2-Pin SMC [SMCJ22CA-E3/57T]; 165-2880
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Maximum Clamping Voltage | 35.5V |
| Minimum Breakdown Voltage | 24.4V |
| Mounting Type | Surface Mount |
| Package Type | SMC |
| Maximum Reverse Stand-off Voltage | 22V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 1500W |
| Maximum Peak Pulse Current | 42.3A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Height | 2.42mm |
| Width | 6.22mm |
| Length | 7.11mm |
| Dimensions | 7.11 x 6.22 x 2.42mm |
| Test Current | 1mA |
| Maximum Reverse Leakage Current | 1µA |
