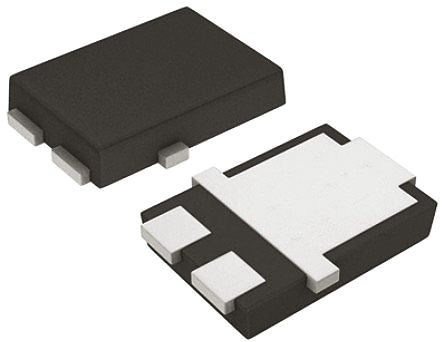

Vishay SMPC24A-M3/86A, Uni-Directional TVS Diode, 1500W, 3-Pin TO-277A [SMPC24A-M3/86A]; 165-6309
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 38.9V |
| Minimum Breakdown Voltage | 26.7V |
| Mounting Type | Surface Mount |
| Package Type | TO-277A |
| Maximum Reverse Stand-off Voltage | 24V |
| Pin Count | 3 |
| Peak Pulse Power Dissipation | 1500W |
| Maximum Peak Pulse Current | 38.6A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Height | 1.2mm |
| Length | 6.15mm |
| Maximum Reverse Leakage Current | 1µA |
| Test Current | 1mA |
| Width | 4.35mm |
| Dimensions | 6.15 x 4.35 x 1.2mm |
