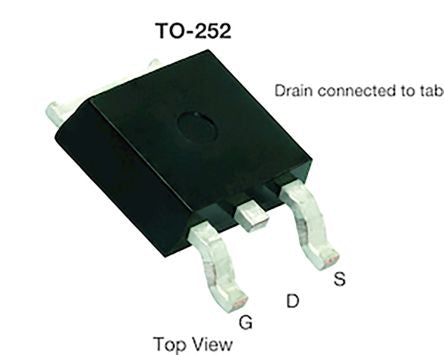

Automotive N-Channel 40 V (D-S) 175C MOS [SQD40020E_GE3]; 188-5048
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 100 A |
| Maximum Drain Source Voltage | 40 V |
| Package Type | TO-252 |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 4.7 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3.5V |
| Minimum Gate Threshold Voltage | 2.5V |
| Maximum Power Dissipation | 107 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±20 V |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Typical Gate Charge @ Vgs | 84 nC @ 10 V |
| Height | 4.57mm |
| Maximum Operating Temperature | +175 °C |
| Length | 10.41mm |
| Forward Diode Voltage | 1.5V |
| Width | 9.65mm |
| Minimum Operating Temperature | -55 °C |
