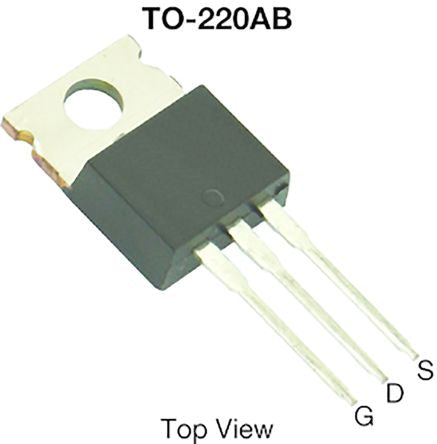

N-Channel 40-V (D-S) MOSFET TO-220 650M [SUP40012EL-GE3]; 188-5126
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 150 A |
| Maximum Drain Source Voltage | 40 V |
| Package Type | TO-220AB |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 2.3 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.5V |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 150 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±20 V |
| Number of Elements per Chip | 1 |
| Width | 4.65mm |
| Forward Diode Voltage | 1.5V |
| Minimum Operating Temperature | -55 °C |
| Height | 9.01mm |
| Maximum Operating Temperature | +175 °C |
| Typical Gate Charge @ Vgs | 130 nC @ 10 V |
| Length | 10.51mm |
