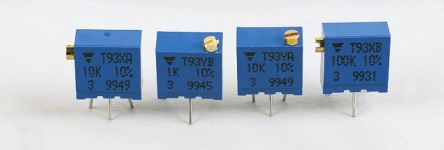

100kΩ Through Hole Trimmer Potentiometer 0.5W Side Adjust Vishay T93 Series [T93XB104KT20]; 167-9989
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Resistance | 100 kΩ |
| Mounting Type | Through Hole |
| Number of Turns | 21 (Electrical) Turns, 23 (Mechanical) Turns |
| Orientation | Side Adjust |
| Power Rating | 0.5W |
| Series | T93 |
| Termination Style | Pin |
| Tolerance | ±10% |
| Temperature Coefficient | ±100ppm/°C |
| Shaft Diameter | 2.2 mm |
| Length | 9.7mm |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +155°C |
