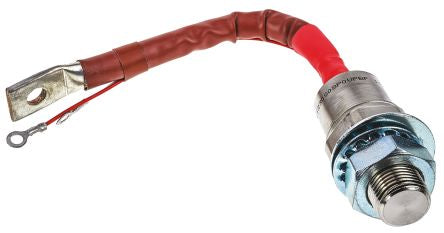

Vishay, VS-ST230S08P0VPBF, Thyristor, 800V 230A, 150mA 3-Pin, TO-93 [VS-ST230S08P0VPBF]; 700-5636
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 230A |
| Thyristor Type | SCR |
| Package Type | TO-93 |
| Repetitive Peak Reverse Voltage | 800V |
| Surge Current Rating | 5970A |
| Mounting Type | Thread Mount |
| Maximum Gate Trigger Current | 150mA |
| Maximum Gate Trigger Voltage | 3V |
| Maximum Holding Current | 600mA |
| Pin Count | 3 |
| Length | 35mm |
| Width | 30.33mm |
| Height | 49.5mm |
| Dimensions | 35 x 30.33 x 49.5mm |
| Maximum Operating Temperature | +125 °C |
| Repetitive Peak Forward Blocking Voltage | 800V |
| Repetitive Peak Off-State Current | 30mA |
| Peak On-State Voltage | 1.55V |
| Minimum Operating Temperature | -40 °C |
