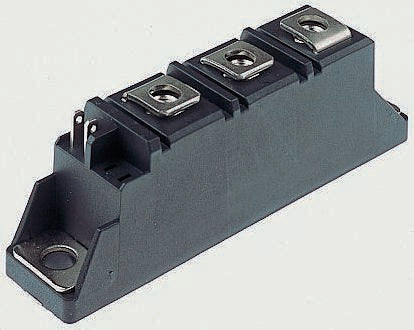

Vishay, VS-VSKH56/12, Thyristor Module, SCR, 60A 1200V, 5-Pin TO-240AA [VS-VSKH56/12]; 165-2988
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Thyristor Type | SCR |
| Maximum Gate Trigger Voltage | 4V |
| Maximum Gate Trigger Current | 270mA |
| Maximum Holding Current | 200mA |
| Rated Average On-State Current | 60A |
| Repetitive Peak Reverse Voltage | 1200V |
| Surge Current Rating | 1.2kA |
| Mounting Type | Panel Mount |
| Package Type | TO-240AA |
| Pin Count | 5 |
| Peak On-State Voltage | 1.7V |
| Repetitive Peak Forward Blocking Voltage | 1200V |
| Repetitive Peak Off-State Current | 15mA |
| Dimensions | 92 x 22.6 x 30mm |
| Maximum Operating Temperature | +125 °C |
| Height | 30mm |
| Width | 22.6mm |
| Minimum Operating Temperature | -40 °C |
| Length | 92mm |
