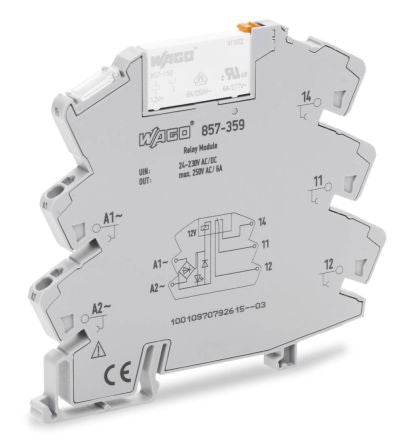

Wago 857 Series 230 V ac/dc DIN Rail Relay Socket, SPDT, Cage Clamp, 6 A 24 → 230 V ac/dc [857-359]; 180-3041
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Input Voltage | 24V ac/dc |
| Coil Voltage | 230V ac/dc |
| Maximum Input Voltage | 230V ac/dc |
| Contact Configuration | SPDT |
| Switching Current | 3.5 mA, 20 mA |
| Mounting Type | DIN Rail |
| Load Current Rating | 6A |
| Switching Voltage | 250V ac |
| Load Voltage Rating | 250V ac |
| Terminal Type | Cage Clamp |
| Length | 6mm |
| Series | 857 |
| Depth | 94mm |
| Height | 81mm |
| Dimensions | 6 x 81 x 94mm |
| Contact Material | Silver Alloy |
| Input Current | 3.5 mA, 20 mA |
| Operating Temperature Range | -40 → +70°C |
| Input Voltage Range | 24 → 230V ac/dc |
| Life | 5 x 10^6 (Mechanical) cycles, 50 x 10^3 (Electrical) cycles |
| Maximum Operating Temperature | +70°C |
| Standards Met | EN 50121-3-2, EN 61010-2-201, EN 61373, EN 61810-1, UL, UL E175199 Sec.4 |
| Minimum Operating Temperature | -40°C |
| Special Features | IP20 Degree of protection, LED Indication |
