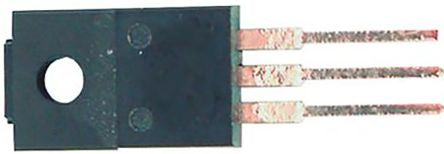

BT137X-600 8A, 600V, TRIAC, Gate Trigger 1.5V 70mA, 3-pin, Through Hole, TO-220F NXP [BT137X-600]; 508-670
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 8A |
| Mounting Type | Through Hole |
| Package Type | TO-220F |
| Maximum Gate Trigger Current | 70mA |
| Repetitive Peak Reverse Voltage | 600V |
| Surge Current Rating | 71A |
| Pin Count | 3 |
| Maximum Gate Trigger Voltage | 1.5V |
| Repetitive Peak Forward Blocking Voltage | 600V |
| Maximum Holding Current | 20mA |
| Dimensions | 10.3 x 4.6 x 9.3mm |
| Length | 10.3mm |
| Width | 4.6mm |
| Height | 9.3mm |
| Peak On-State Voltage | 1.65V |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Repetitive Peak Off-State Current | 0.5mA |
