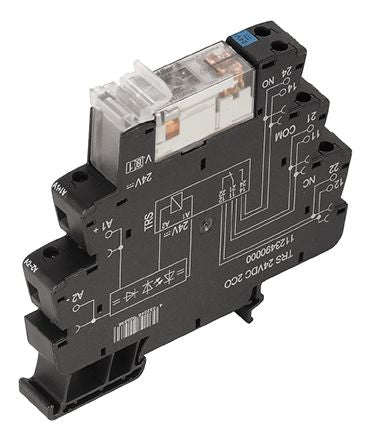

Weidmuller TRS Series 24 → 230V ac/dc DIN Rail Interface Relay Module, DPDT, Screw [1123580000]; 892-8818
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Input Voltage | 24V ac/dc |
| Coil Voltage | 24 → 230V ac/dc |
| Maximum Input Voltage | 230V ac/dc |
| Contact Configuration | DPDT |
| Switching Current | 0.333333333333333 |
| Mounting Type | DIN Rail |
| Terminal Type | Screw |
| Length | 90mm |
| Series | TRS |
| Depth | 12.8mm |
| Height | 88mm |
| Dimensions | 90 x 12.8 x 88mm |
| Contact Material | Silver Alloy |
| Input Current | 6 mA @ V ac, 45 mA @ V dc |
| Turn Off Time | <125ms |
| Operating Temperature Range | -40 → +60°C |
| Turn On Time | <22ms |
| Minimum Operating Temperature | -40°C |
| Special Features | Illuminated Ejection Lever, Various Protective Circuits in the Input |
| Standards Met | CE, CULus, EAC, RoHS Compliant |
| Relay Switching Classification | General Purpose Relay |
| Number of Poles | 2 |
| Maximum Operating Temperature | +60°C |
