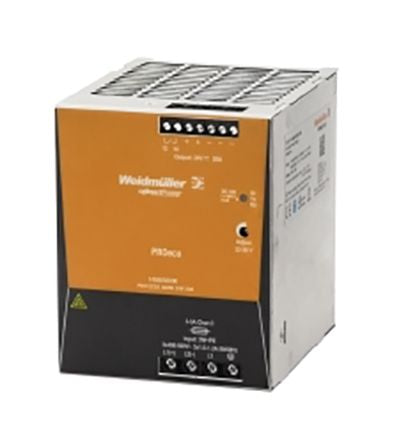

Weidmuller, PRO ECO DIN Rail Power Supply, 24V dc Output Voltage, 20A Output Current [1469550000]; 923-6523
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac, Dc |
| AC or DC Output Voltage | Dc |
| Input Voltage | 320 → 575V ac |
| Output Voltage | 24 V dc |
| Output Current | 20 A |
| Power Rating | 480W |
| Number of Outputs | 1 |
| Electrical Phase | 3 |
| Height | 125mm |
| Width | 100mm |
| Minimum Temperature | -25°C |
| Special Features | Compact Size, Easy to Maintain, Flexible, High Efficiency |
| Ripple And Noise | <50mV |
| Depth | 120mm |
| MTBF | >500000h |
| Maximum Temperature | +70°C |
| Standards Met | CE Certified, CULus Listed, EAC, EN 50178/VDE 0160, EN 55022, EN 60204, EN 60950, EN 61000-3-2, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8, IEC 1709, IEC 60068-2-27, IEC 60068-2-6, IEC 61558-2-16, VDE 0100-410/DIN57100-410, VDE 0106-101, 61000-4-4, 61000-4-5, 61000-4-6 |
| Series | PRO ECO |
| Mounting Type | DIN Rail Mount |
