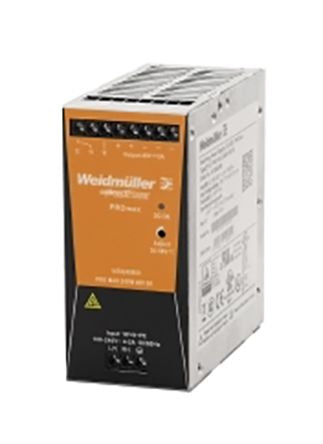

Weidmüller, PRO MAX DIN Rail Power Supply, 24V dc Output Voltage, 10A Output Current [1478130000]; 923-6551
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac, Dc |
| AC or DC Output Voltage | Dc |
| Input Voltage | 85 → 277V ac |
| Output Voltage | 24 V dc |
| Output Current | 0.416666666666667 |
| Power Rating | 240W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Height | 130mm |
| Width | 60mm |
| MTBF | >500000h |
| Ripple And Noise | <50mV |
| Minimum Temperature | -25°C |
| Maximum Temperature | +70°C |
| Special Features | Durable, High Performance |
| Series | PRO MAX |
| Depth | 125mm |
| Mounting Type | DIN Rail Mount |
| Standards Met | CE Certified, CULus Listed, CULus Recognized, EAC, EN 50178/VDE 0160, EN 55022, EN 60204, EN 60950, EN 61000-3-2, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8, IEC 1709, IEC 60068-2-27, IEC 60068-2-6, IEC 61558-2-16, TUV, VDE 0100-410/DIN57100-410, VDE 0106-101, 61000-4-4, 61000-4-5, 61000-4-6 |
