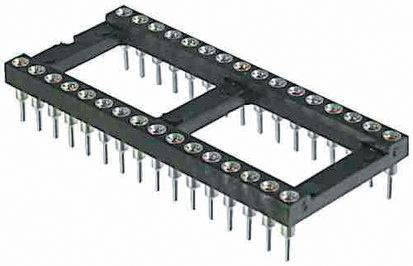

Winslow 2.54mm Pitch Vertical 28 Way, Through Hole Turned Pin Open Frame IC Dip Socket, 3A [W30528SFT]; 226-3916
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 28 |
| Mounting Type | Through Hole |
| Pin Type | Turned |
| Pitch | 2.54mm |
| Row Width | 15.24mm |
| Frame Type | Open Frame |
| Termination Method | Solder |
| Contact Plating | Gold, Tin |
| Current Rating | 3A |
| Orientation | Vertical |
| Length | 35.48mm |
| Width | 3.5mm |
| Depth | 17.66mm |
| Dimensions | 35.48 x 3.5 x 17.66mm |
| Maximum Operating Temperature | +150°C |
| Minimum Operating Temperature | -65°C |
| Contact Material | Beryllium Copper |
| Housing Material | PBT |
