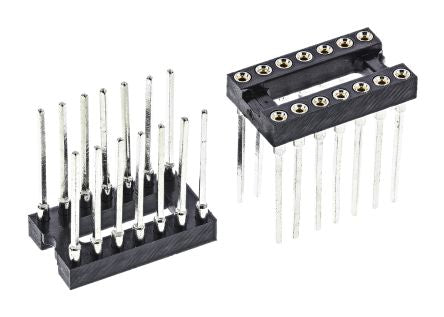

Winslow 2.54mm Pitch Vertical 14 Way, Through Hole Turned Pin Open Frame IC Dip Socket, 5A [W30614T3RC]; 188-2695
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 14 |
| Mounting Type | Through Hole |
| Pin Type | Turned |
| Pitch | 2.54mm |
| Row Width | 7.62mm |
| Frame Type | Open Frame |
| Termination Method | Wire Wrap |
| Contact Plating | Gold, Tin |
| Current Rating | 5A |
| Orientation | Vertical |
| Length | 17.7mm |
| Width | 10.14mm |
| Depth | 3mm |
| Dimensions | 17.7 x 10.14 x 3mm |
| Minimum Operating Temperature | -65°C |
| Contact Material | Beryllium Copper |
| Housing Material | Glass Fibre Reinforced PBT |
| Maximum Operating Temperature | +150°C |
