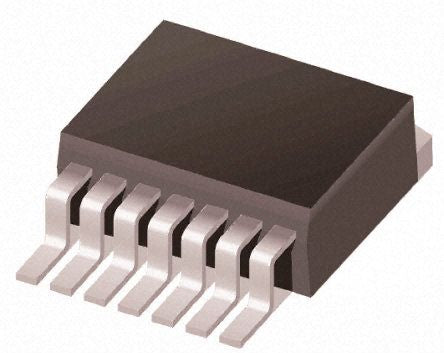

C2M1000170J SiC N-Channel MOSFET, 5.3 A, 1700 V, 7-Pin D2PAK Wolfspeed [C2M1000170J]; 162-9710
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 5.3 A |
| Maximum Drain Source Voltage | 1700 V |
| Package Type | D2PAK (TO-263) |
| Mounting Type | Surface Mount |
| Pin Count | 7 |
| Maximum Drain Source Resistance | 1.4 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 78 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -10 V, +25 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Typical Gate Charge @ Vgs | 13 nC @ 20 V |
| Height | 4.57mm |
| Forward Diode Voltage | 3.8V |
| Width | 10.99mm |
| Transistor Material | SiC |
| Length | 10.23mm |
