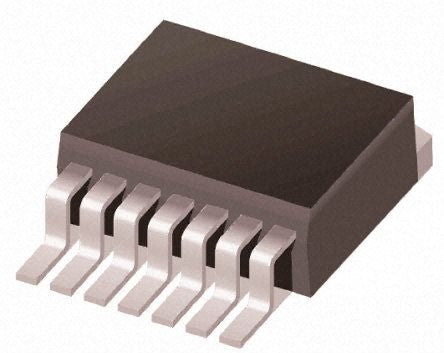

C3M0065090J SiC N-Channel MOSFET, 35 A, 900 V, 7-Pin D2PAK Wolfspeed [C3M0065090J]; 915-8830
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 35 A |
| Maximum Drain Source Voltage | 900 V |
| Package Type | D2PAK (TO-263) |
| Mounting Type | Surface Mount |
| Pin Count | 7 |
| Maximum Drain Source Resistance | 78 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.1V |
| Minimum Gate Threshold Voltage | 1.8V |
| Maximum Power Dissipation | 113 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | +25 V |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +150 °C |
| Forward Diode Voltage | 4.4V |
| Minimum Operating Temperature | -55 °C |
| Transistor Material | SiC |
| Typical Gate Charge @ Vgs | 30 nC @ 15 V |
| Length | 10.23mm |
| Width | 10.99mm |
| Height | 4.57mm |
