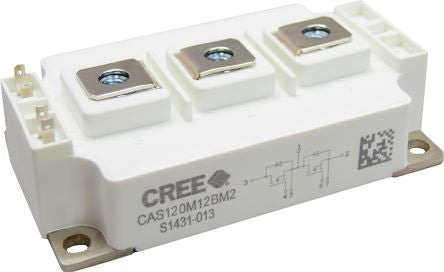

CAS120M12BM2 Dual SiC N-Channel MOSFET, 193 A, 1200 V, 7-Pin Wolfspeed [CAS120M12BM2]; 916-3879
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 193 A |
| Maximum Drain Source Voltage | 1200 V |
| Package Type | Half Bridge |
| Mounting Type | Panel Mount |
| Pin Count | 7 |
| Maximum Drain Source Resistance | 30 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.6V |
| Minimum Gate Threshold Voltage | 1.8V |
| Maximum Power Dissipation | 925 W |
| Transistor Configuration | Series |
| Maximum Gate Source Voltage | -10 V, +25 V |
| Number of Elements per Chip | 2 |
| Width | 61.4mm |
| Height | 30mm |
| Typical Gate Charge @ Vgs | 378 nC @ 20 V |
| Length | 106.4mm |
| Maximum Operating Temperature | +150 °C |
| Forward Diode Voltage | 2.4V |
| Transistor Material | SiC |
| Minimum Operating Temperature | -40 °C |
