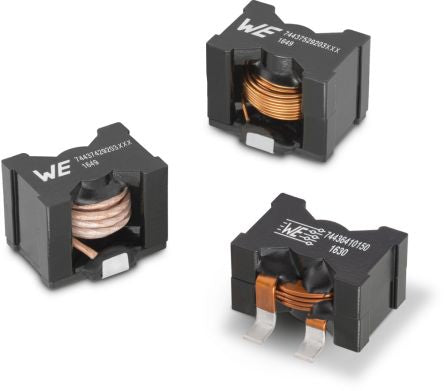

Wurth 10 μH ±15% Manganese Zinc Ferrite Power Inductor, Max SRF:13.55MHz, 36A Idc, 1.31mΩ Rdc WE-HCF [74436411000]; 168-3172
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 10 μH |
| Maximum DC Current | 36A |
| Mounting Type | Surface Mount |
| Maximum DC Resistance | 1.31mΩ |
| Tolerance | ±15% |
| Length | 28mm |
| Depth | 19.4mm |
| Height | 15.4mm |
| Dimensions | 28 x 19.4 x 15.4mm |
| Core Material | Manganese Zinc Ferrite |
| Maximum Self Resonant Frequency | 13.55MHz |
| Lead Pitch | 10.15mm |
| Series | WE-HCF |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -40°C |
| Lead Diameter | 4 (Width)mm |
| Terminal Type | Solder |
