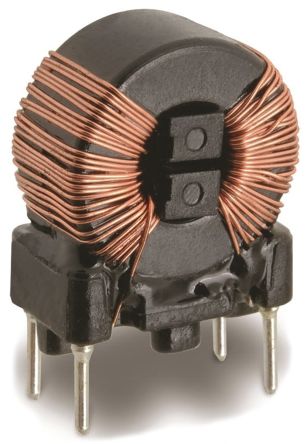

Wurth 2 x 1 mH -30 → +50% Nano Crystalline Common Mode Choke, Max SRF:1 kHz → 300 MHz, 2.5A Idc [7448012501]; 163-5535
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 2 x 1 mH |
| Maximum DC Current | 2.5A |
| Mounting Type | Through Hole |
| Maximum DC Resistance | 2 x 55mΩ |
| Tolerance | -30 → +50% |
| Length | 14mm |
| Depth | 7.5mm |
| Height | 16mm |
| Dimensions | 14 x 7.5 x 16mm |
| Core Material | Nano Crystalline |
| Maximum Self Resonant Frequency | 1 kHz → 300 MHz |
| Lead Pitch | 10mm |
| Series | WE-CMBNC |
| Minimum Operating Temperature | -40°C |
| Lead Diameter | 0.7mm |
| Terminal Type | Through Hole |
| Maximum Operating Temperature | +125°C |
