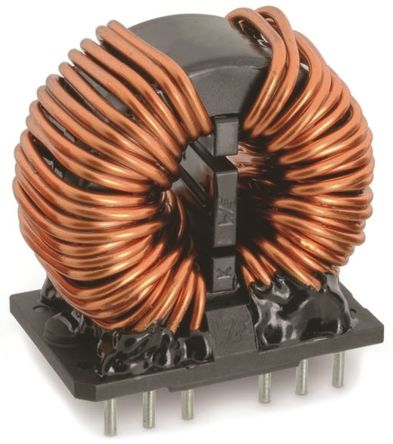

Wurth 2 x 20 mH -30 → +50% Nano Crystalline Common Mode Choke, Max SRF:1 kHz → 300 MHz, 6A Idc [7448060620]; 163-5560
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 2 x 20 mH |
| Maximum DC Current | 6A |
| Mounting Type | Through Hole |
| Maximum DC Resistance | 2 x 45mΩ |
| Tolerance | -30 → +50% |
| Length | 42mm |
| Depth | 27mm |
| Height | 46mm |
| Dimensions | 42 x 27 x 46mm |
| Core Material | Nano Crystalline |
| Maximum Self Resonant Frequency | 1 kHz → 300 MHz |
| Lead Pitch | 10mm |
| Series | WE-CMBNC |
| Minimum Operating Temperature | -40°C |
| Lead Diameter | 1mm |
| Terminal Type | Through Hole |
| Maximum Operating Temperature | +125°C |
