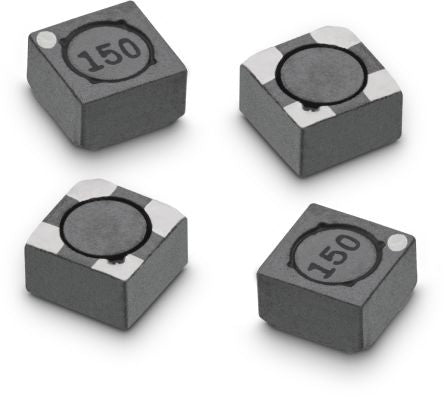

Wurth 3.3 μH ±30% Power Inductor, Max SRF:50MHz, 1.9A Idc, 120mΩ Rdc WE-DPC HV [7448841033]; 168-3263
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 3.3 μH |
| Maximum DC Current | 1.9A |
| Mounting Type | Surface Mount |
| Maximum DC Resistance | 120mΩ |
| Tolerance | ±30% |
| Length | 5.2mm |
| Depth | 5.2mm |
| Height | 3.1mm |
| Dimensions | 5.2 x 5.2 x 3.1mm |
| Maximum Self Resonant Frequency | 50MHz |
| Series | WE-DPC HV |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -40°C |
| Terminal Type | Solder |
