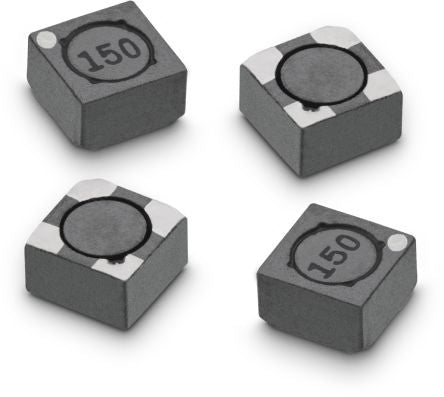

Wurth 8.2 μH ±30% Power Inductor, Max SRF:40MHz, 1.3A Idc, 265mΩ Rdc WE-DPC HV [7448841082]; 168-3151
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 8.2 μH |
| Maximum DC Current | 1.3A |
| Mounting Type | Surface Mount |
| Maximum DC Resistance | 265mΩ |
| Tolerance | ±30% |
| Length | 5.2mm |
| Depth | 5.2mm |
| Height | 3.1mm |
| Dimensions | 5.2 x 5.2 x 3.1mm |
| Maximum Self Resonant Frequency | 40MHz |
| Series | WE-DPC HV |
| Terminal Type | Solder |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +125°C |
