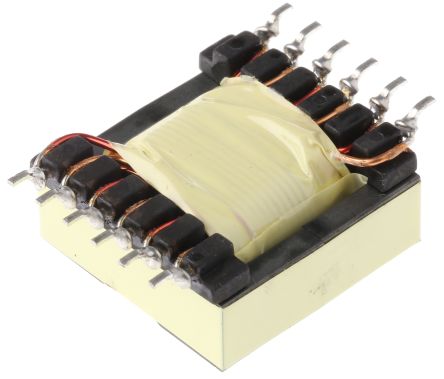

3 Output SMPS Transformer, 87.1μH [749196500]; 522-6134
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Outputs | 3 |
| Mounting Type | Surface Mount |
| Application | Flyback, Forward, Push-Pull, SEPIC, Step Down, Step Up |
| Inductance | 87.1µH |
| Secondary Current | 1.91A |
| Length | 29.5mm |
| Width | 21mm |
| Depth | 10.8mm |
| Dimensions | 29.5 x 21 x 10.8mm |
| Isolation Voltage | 500V dc |
| Leakage Inductance | 0.18µH |
| Direct Current Resistance DCR | 30mΩ |
| Turns Ratio | 1:1:1:1:1:1 |
| Maximum Operating Frequency | 1MHz |
| Minimum Temperature | -40°C |
| Maximum Temperature | +125°C |
