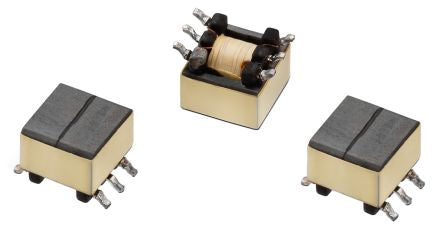

1 Output Signal & Power Gate Drive Transformer, 80V dc, 260μH [760301105]; 151-1278
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Primary Voltage Rating | 80V dc |
| Number of Outputs | 1 |
| Mounting Type | Surface Mount |
| Application | Signal & Power |
| Inductance | 260µH |
| Termination Type | Solder |
| Length | 7mm |
| Width | 7mm |
| Depth | 6mm |
| Dimensions | 7 x 7 x 6mm |
| Isolation Voltage | 1500 (Test)V |
| Maximum Temperature | +125°C |
| Construction | Enclosed |
| Standards Met | IPC/JEDEC J-STD-020D |
| Maximum Operating Frequency | 100kHz |
| Primary DC Resistance | 600mΩ |
| Direct Current Resistance DCR | 600mΩ |
| Secondary DC Resistance | 600mΩ |
| Minimum Operating Frequency | 10kHz |
| Leakage Inductance | 1.7µH |
| Turns Ratio | 0.0423726851851852 |
| Minimum Temperature | -40°C |
