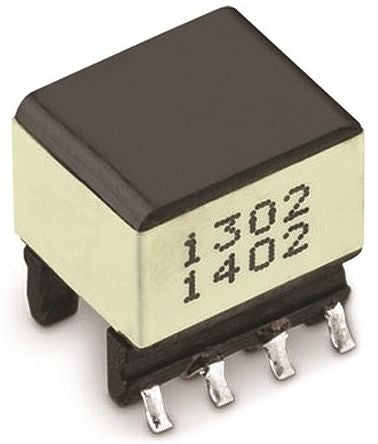

1 Output Flyback Gate Drive Transformer, 250V, 80V ac, 1.08mH [760301304]; 816-4941
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Secondary Voltage Rating | 80V ac |
| Primary Voltage Rating | 250V |
| Number of Outputs | 1 |
| Mounting Type | Surface Mount |
| Application | Flyback |
| Inductance | 1.08mH |
| Termination Type | Solder |
| Length | 10.5mm |
| Width | 10.5mm |
| Depth | 11mm |
| Dimensions | 10.5 x 10.5 x 11mm |
| Isolation Voltage | 1500 V dc, 2500 V ac |
| Turns Ratio | 2,5:1:1 |
| Minimum Temperature | -40°C |
| Primary DC Resistance | 1.3Ω |
| Maximum Operating Frequency | 100kHz |
| Maximum Temperature | +125°C |
| Secondary DC Resistance | 600mΩ |
| Leakage Inductance | 5µH |
| Direct Current Resistance DCR | 1300mΩ |
