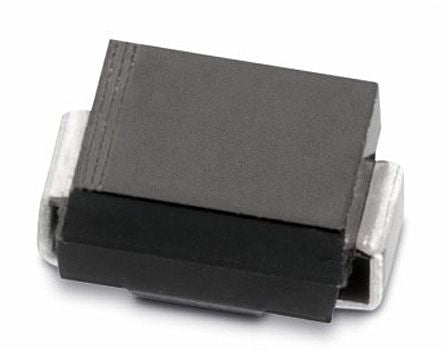

Wurth Elektronik 824501261, Bi-Directional TVS Diode, 400W, 2-Pin DO-214AC [824501261]; 162-3868
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Bi-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 42.1V |
| Minimum Breakdown Voltage | 30.4V |
| Mounting Type | Surface Mount |
| Package Type | DO-214AC (SMA) |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 400W |
| Maximum Peak Pulse Current | 9.5A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 4.24mm |
| Height | 2.14mm |
| Width | 2.67mm |
| Test Current | 1mA |
| Maximum Reverse Leakage Current | 1µA |
| Dimensions | 4.24 x 2.67 x 2.14mm |
